Amiga 4000 replika-bundkort/printkort

The A4000 Replica Project

450,00 DKK

Inkl. skatter.

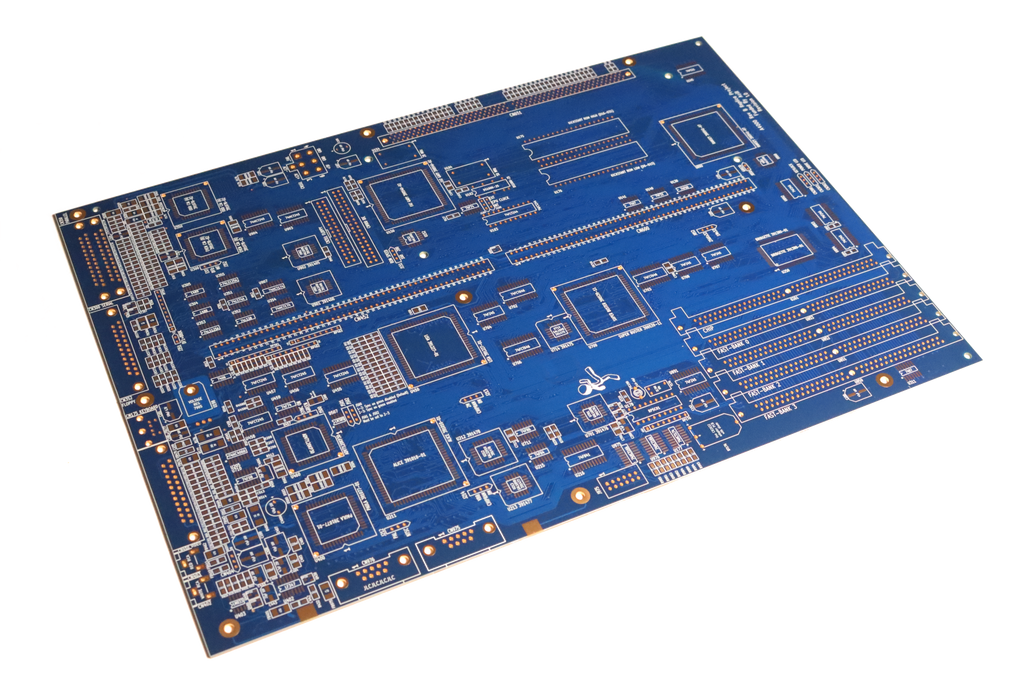

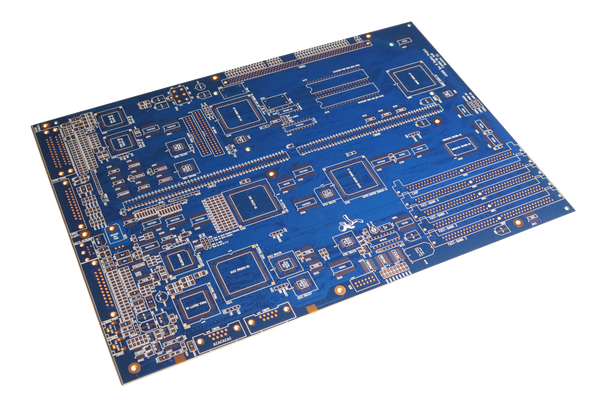

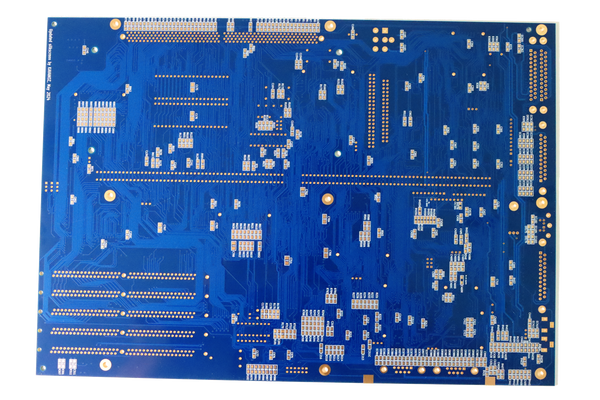

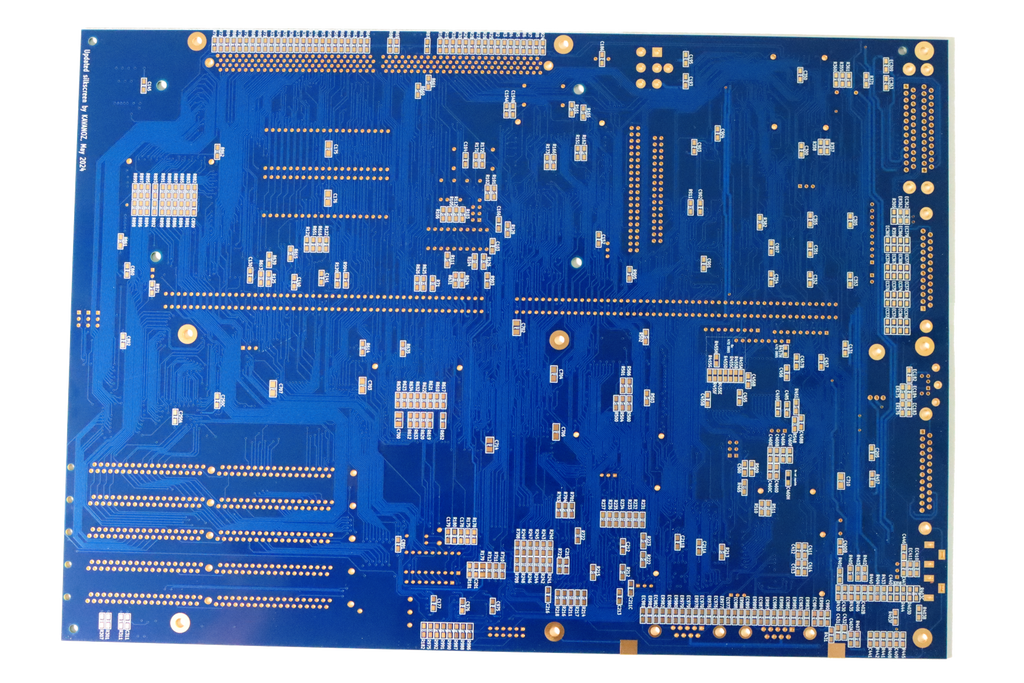

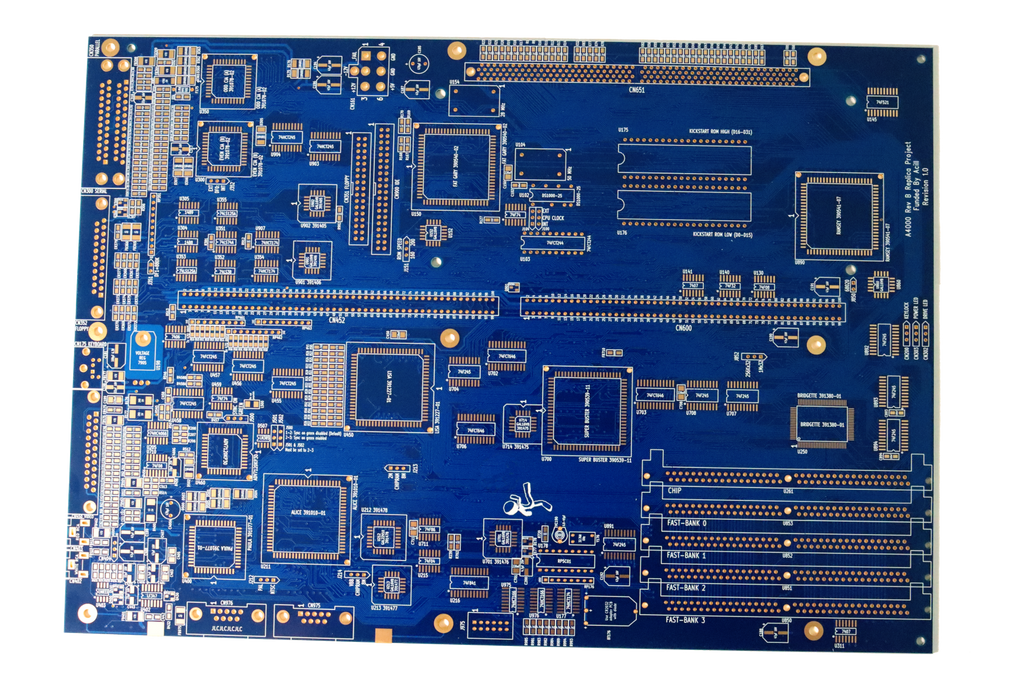

New and unused replica PCB of the Amiga 4000 desktop motherboard.

A4000 Rev B Replica Project, revision 1.0

If your A4000 motherboard has suffered battery leakage or other damage and is beyond repair, you might want to switch it out for this incredible replica motherboard, made one-to-one with the original, and move all your components over (or get new versions of a bunch of them). The project offers an extensive BOM list as well as build guides on the website.

This PCB is manufactured as a 243 × 345 mm, 4-layer board using 1.6 mm FR4 TG135 material, with an ENIG (gold) surface finish to protect the copper against oxidation. The board is provided without any components.

Available in two configurations:

PCB Only

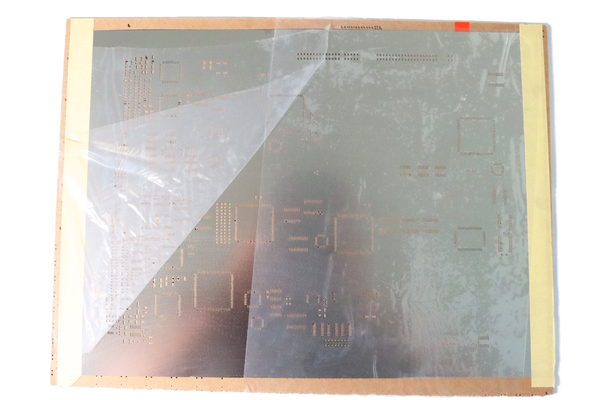

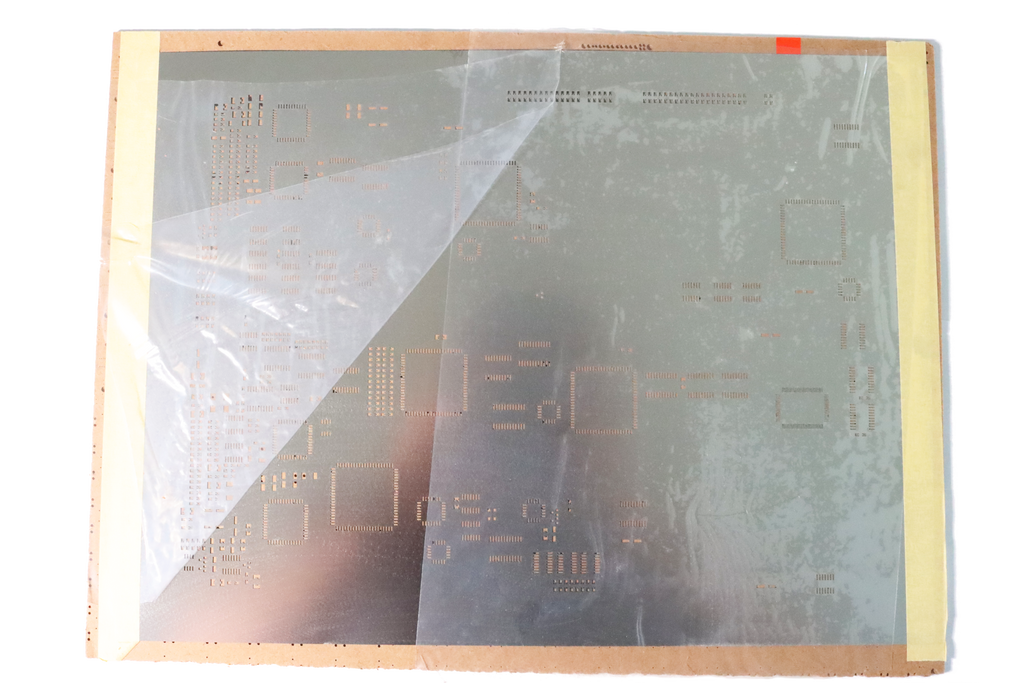

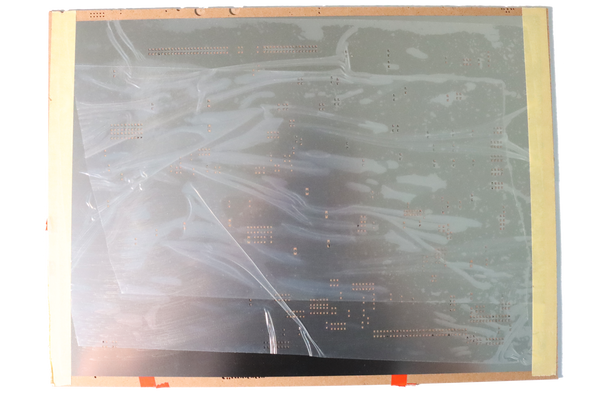

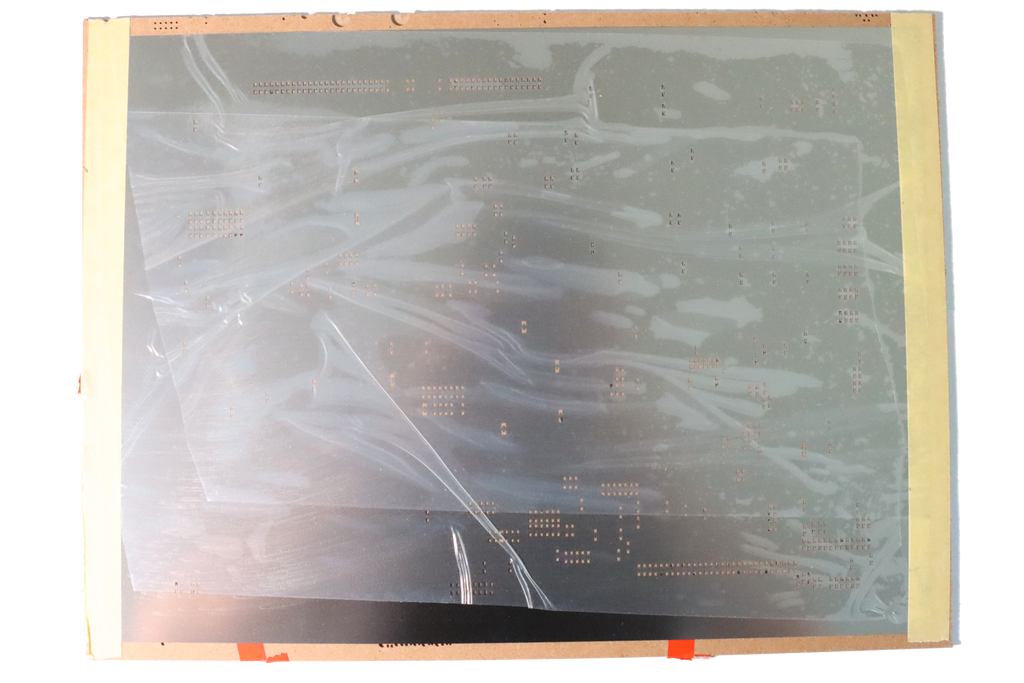

PCB with stencils: The PCB as well as two metal stencil sheets (one for top side, one for bottom side of the PCB)

This is the Rev B motherboard, i.e. you need a CPU card, which is not a part of this listing. Also, the daughterboard is not included.

The A4000 Replica Project: https://github.com/Acill/A4000RevB
A4000 Locator Site: http://locator.reamiga.info/locator.php?project=A4000
A4000 Build Guide: https://wordpress.hertell.nu/?p=1053
Updated BOM: https://shred.github.io/a4000-bom/

Brand: The A4000 Replica Project

SKU:

A4000-pcb-unpopulated ( Only PCB)

A4000-pcb-unpopulated-stencils ( PCB with top+bottom stencils)

Net weight:

290 g ( Only PCB)

1000 g ( PCB with top+bottom stencils)

HS code: 8534001100

Country of origin: HK
