Amiga 4000 delvist bestykket replika-bundkort

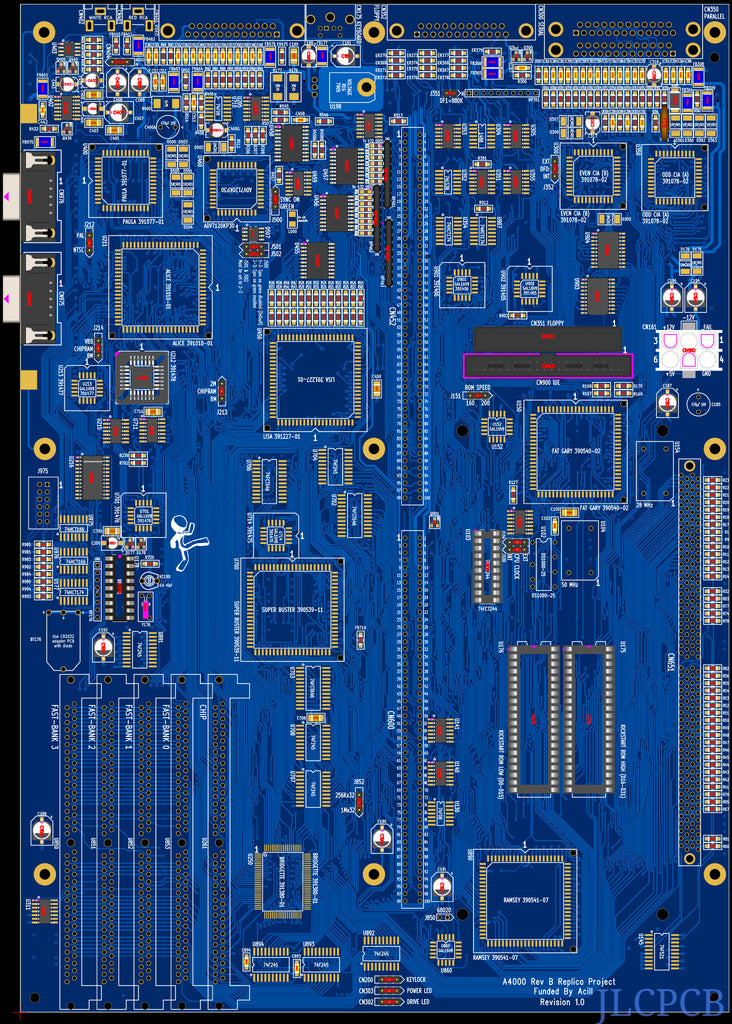

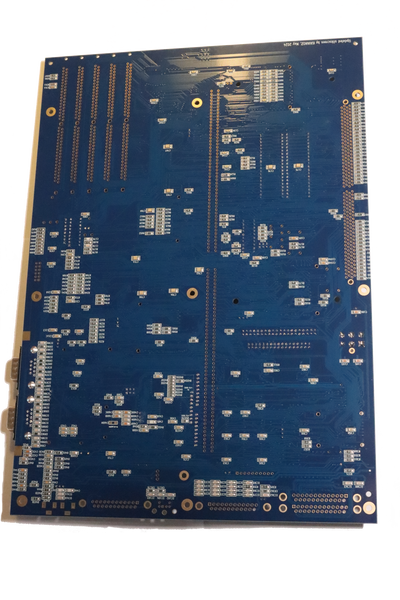

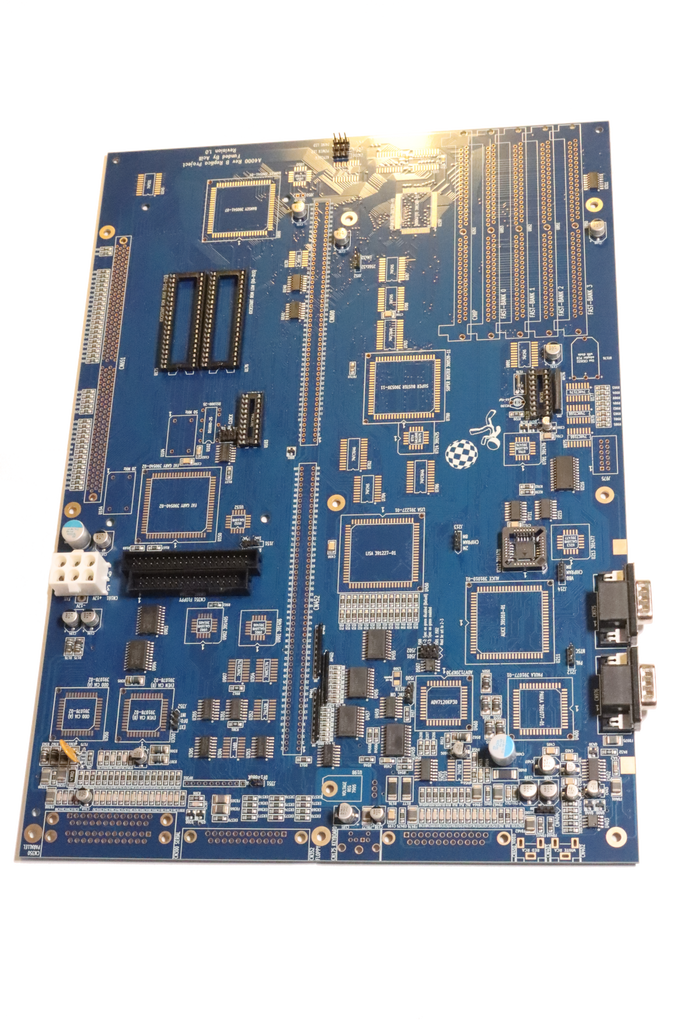

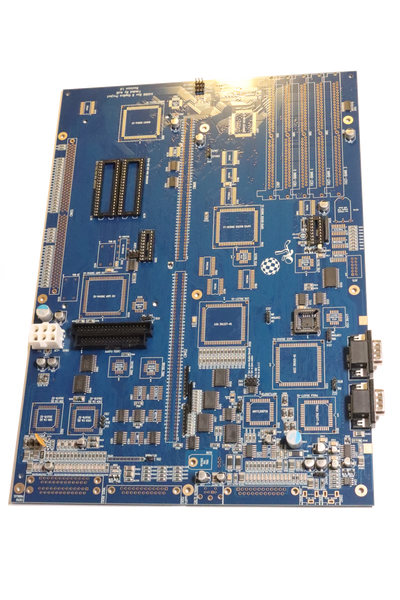

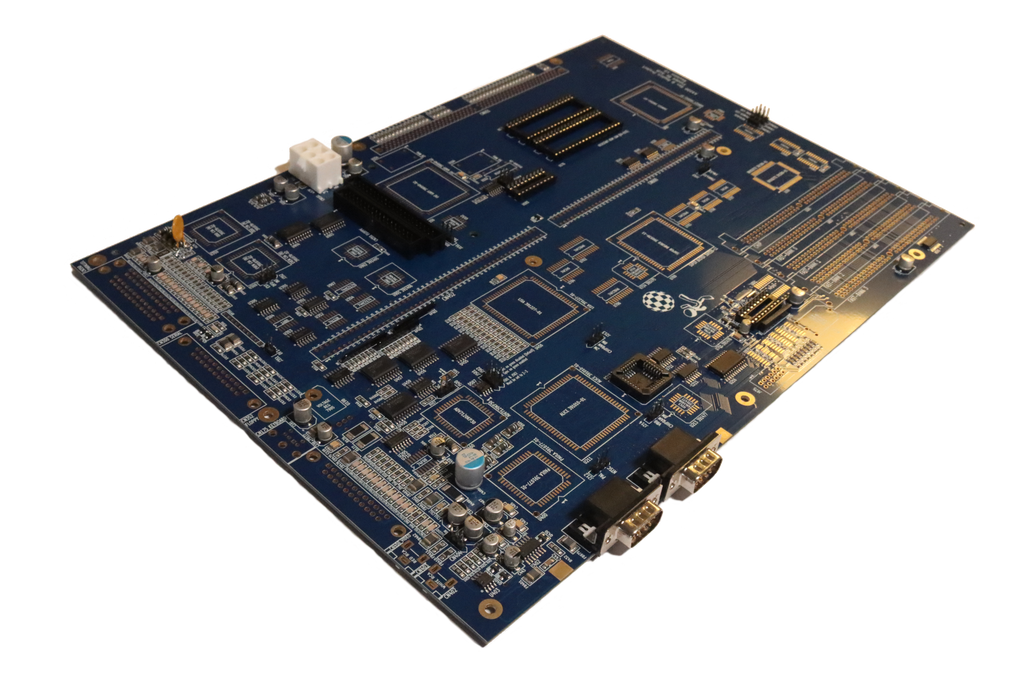

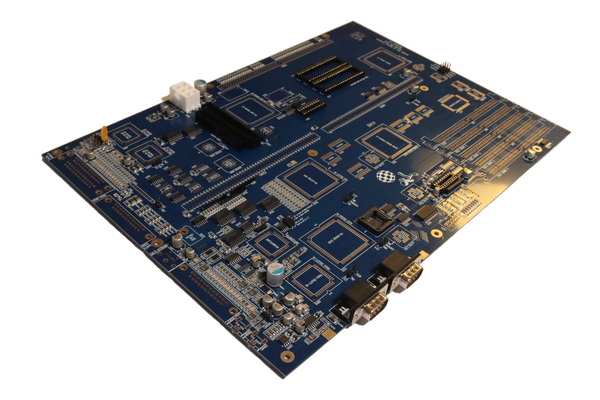

New and unused replica PCB of the Amiga 4000 desktop motherboard, partially mounted with many new quality components.

A4000 Rev B Replica Project, revision 1.0

If your A4000 motherboard has suffered battery leakage or other damage and is beyond repair, you might want to switch it out for this incredible replica motherboard, made one-to-one with the original, and move all your components over (or get new versions of a bunch of them). The project offers an extensive BOM list as well as build guides on the website.

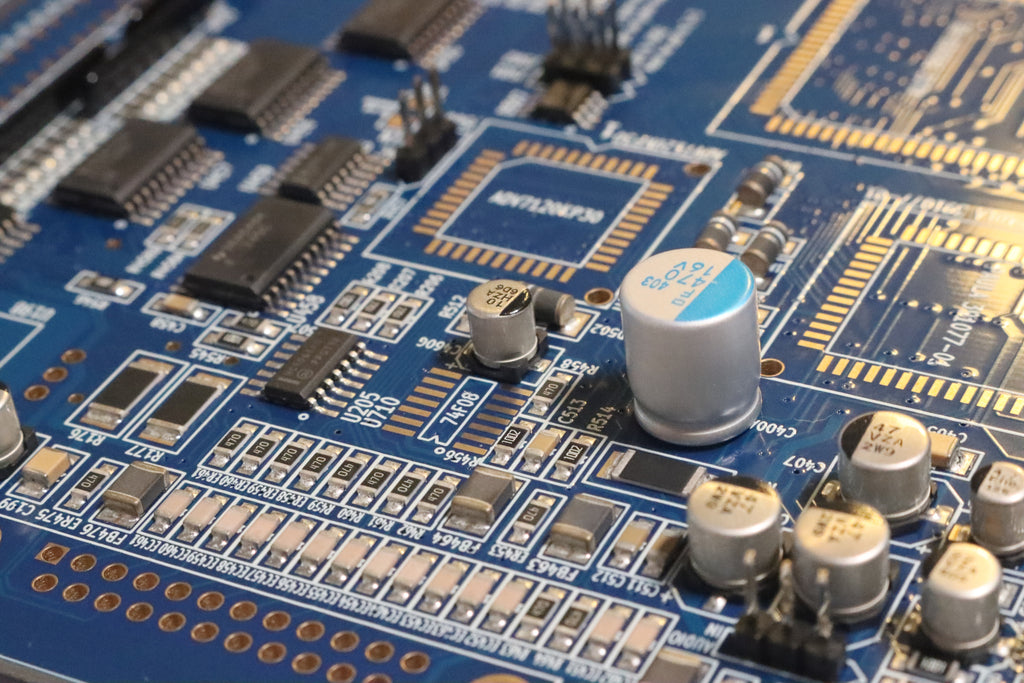

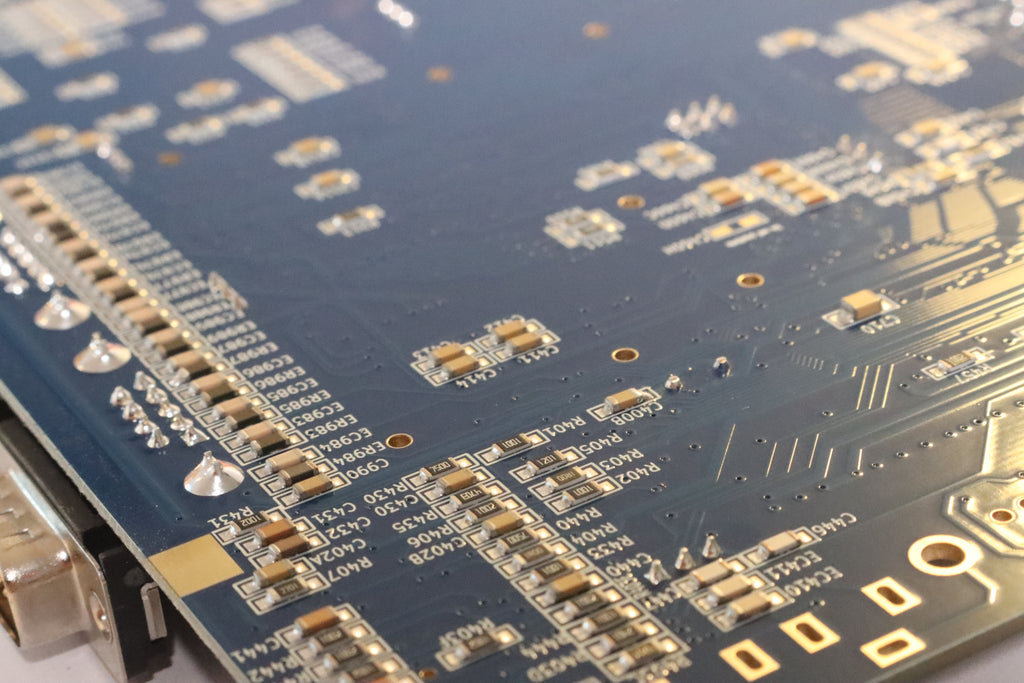

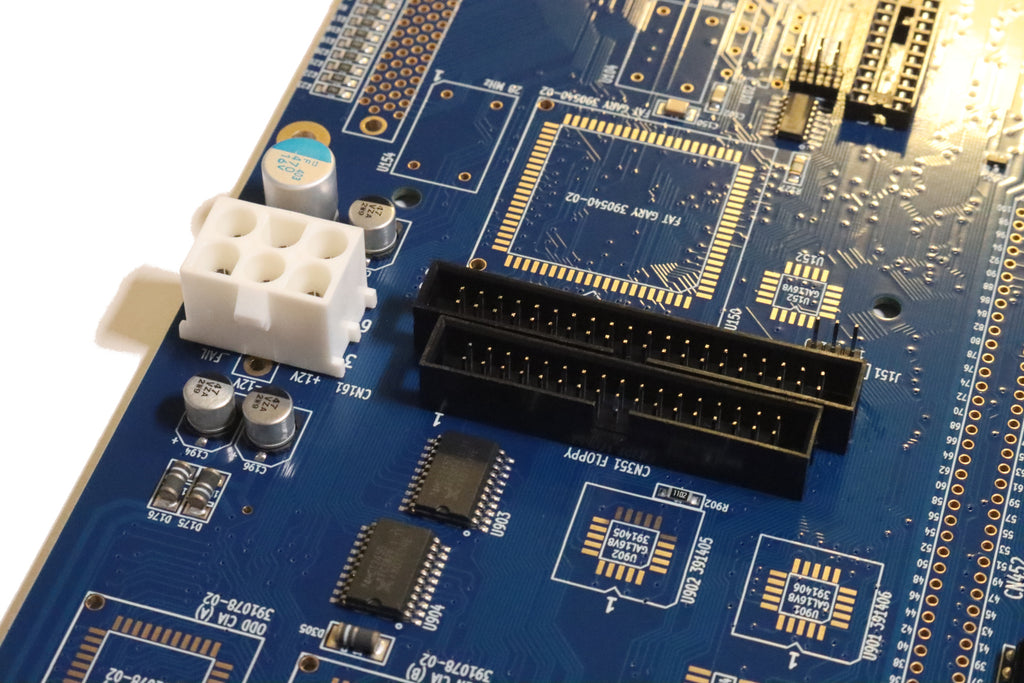

The board comes with many of the needed components pre-mounted, such as resistors and capacitors (all the "tedious" parts to hand solder in quantity), but also some connectors and ICs. All supplied components are of high quality, by good brands. Supplied components may not be the exact brands/type as specified by the Replica Project, depending on availability at time of sourcing, in some cases other compatible quality components have been chosen instead.

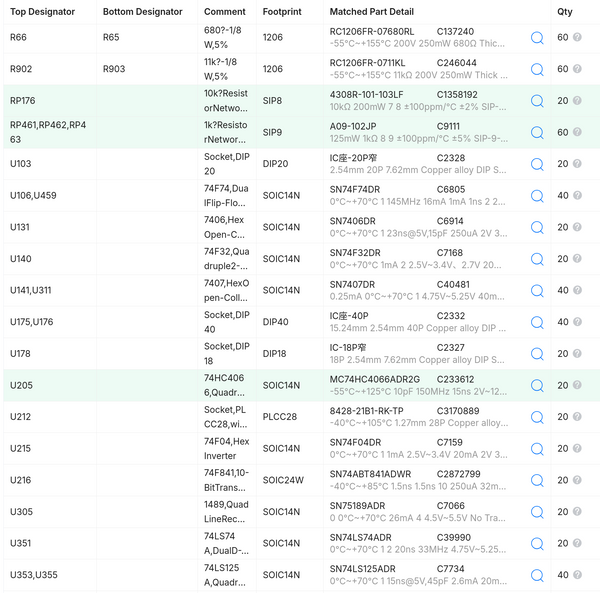

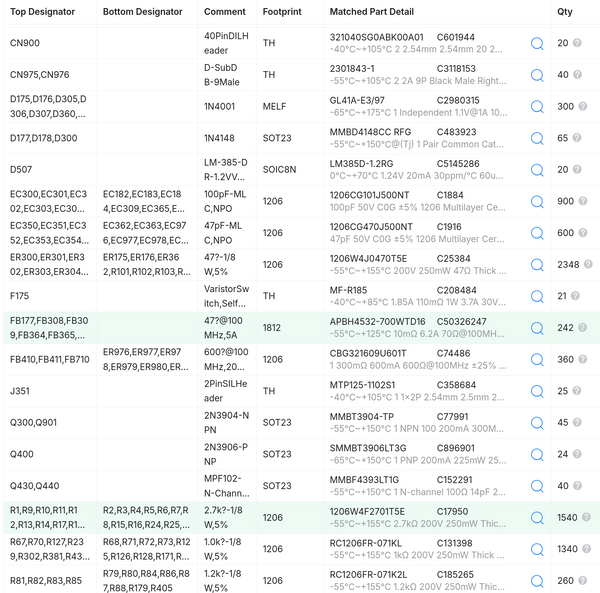

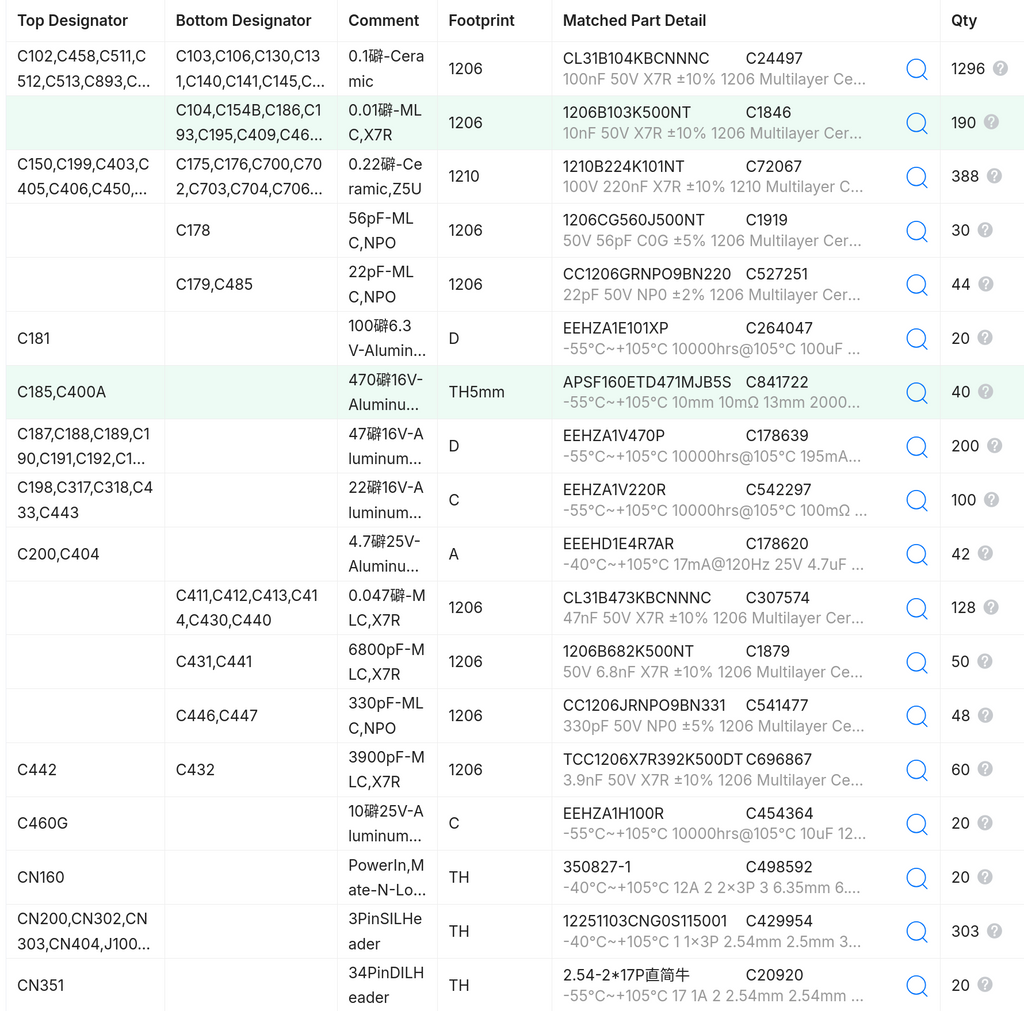

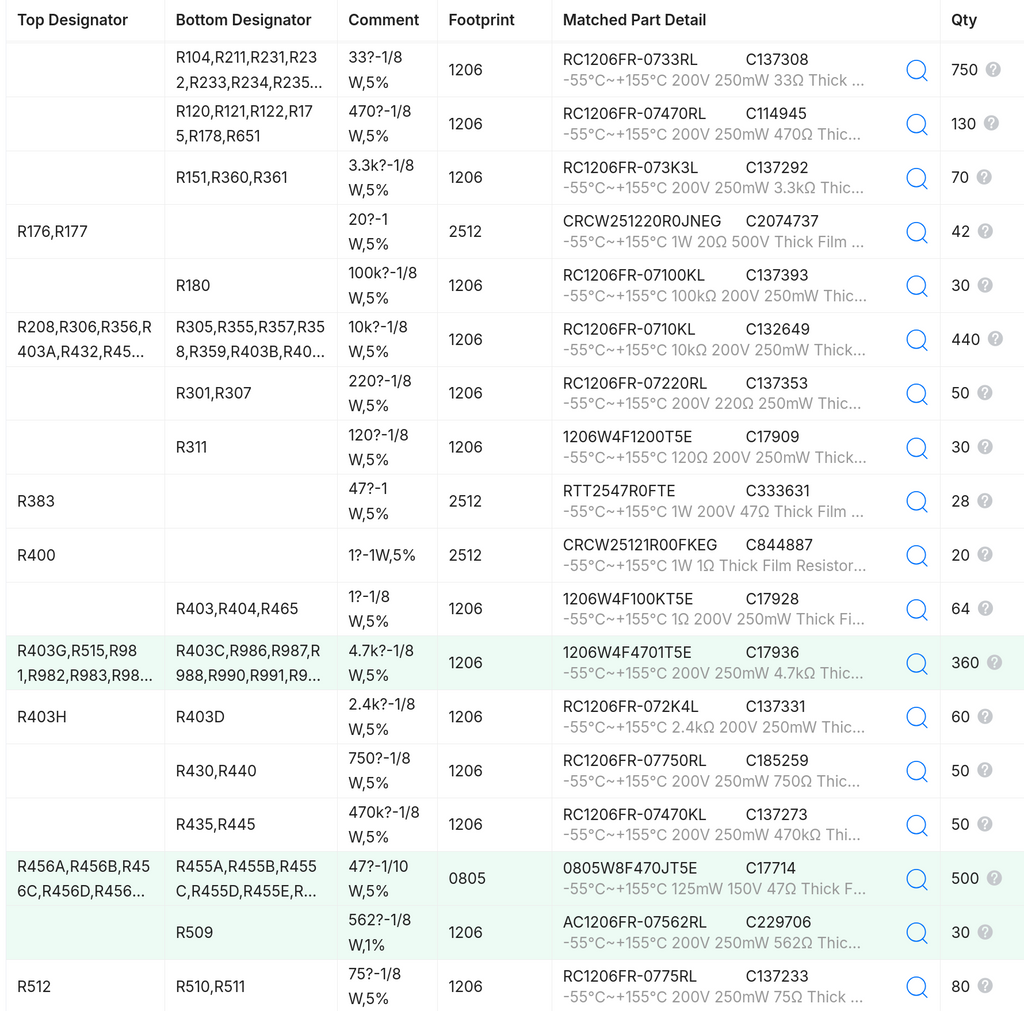

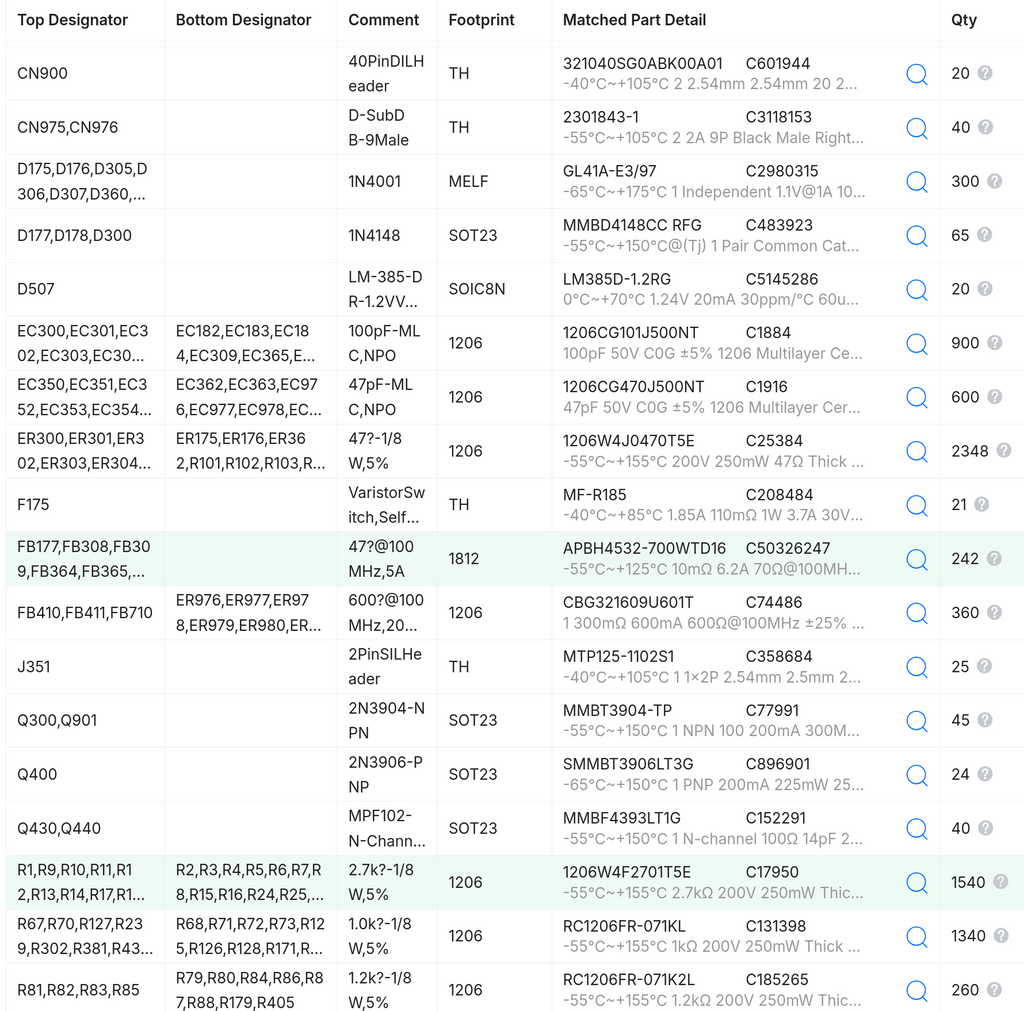

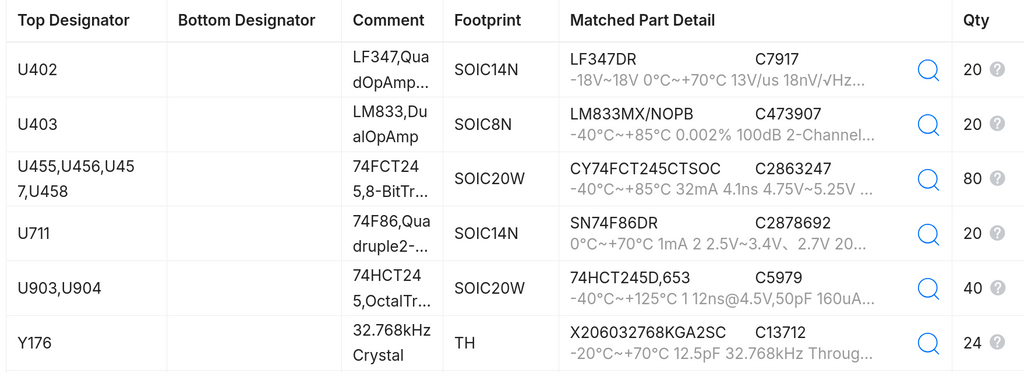

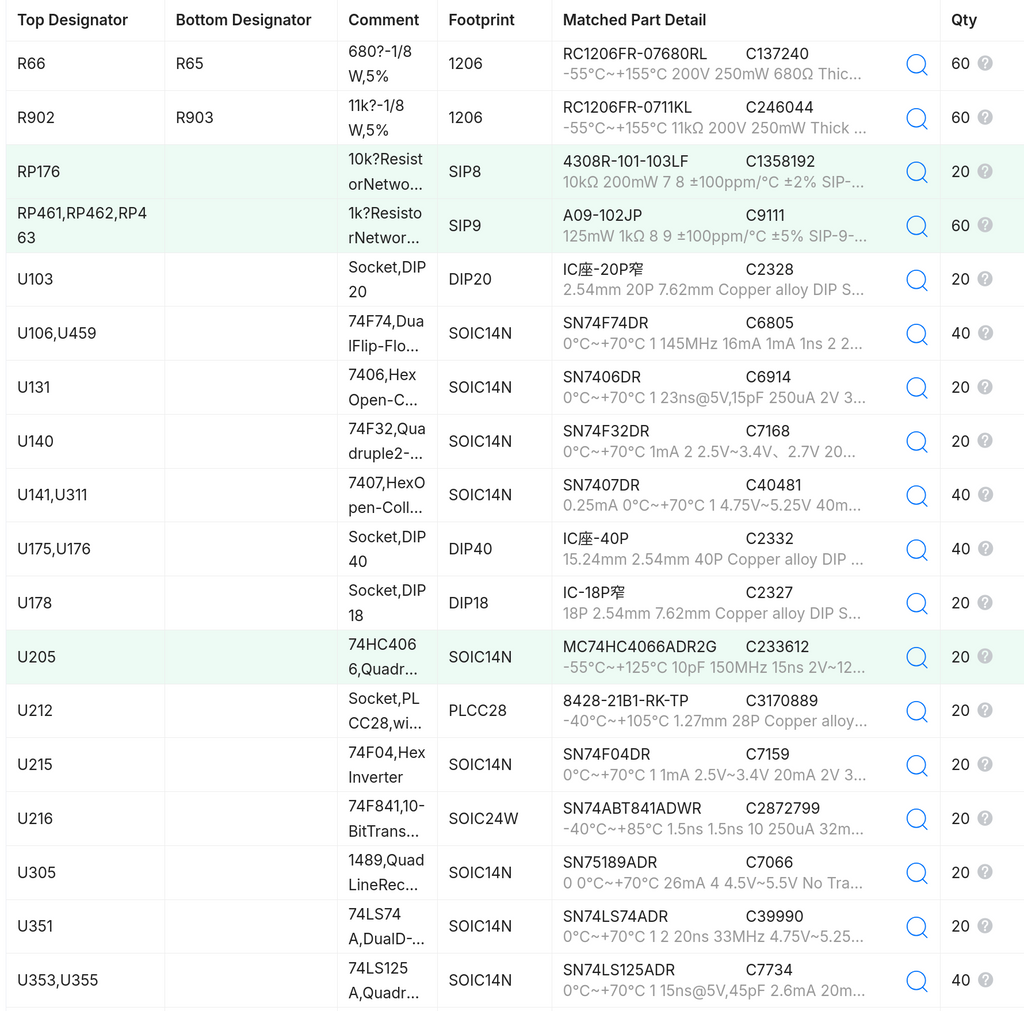

Of the components that are not included, some will be readily available as new parts from Mouser, Farnell, RS, and other places (but were not available from the PCB factory at the time of sourcing). Other components are harder to come by -- for example the Amiga-specific chips -- and these will need to be moved over from an existing Amiga 4000 motherboard. Please note, as opposed to earlier batches, no loose components are provided with the board. A complete list of all mounted components will be included with the board and as pictures with this listing. For a complete list of necessary components, see the A4000 Replica Project's BOM list.

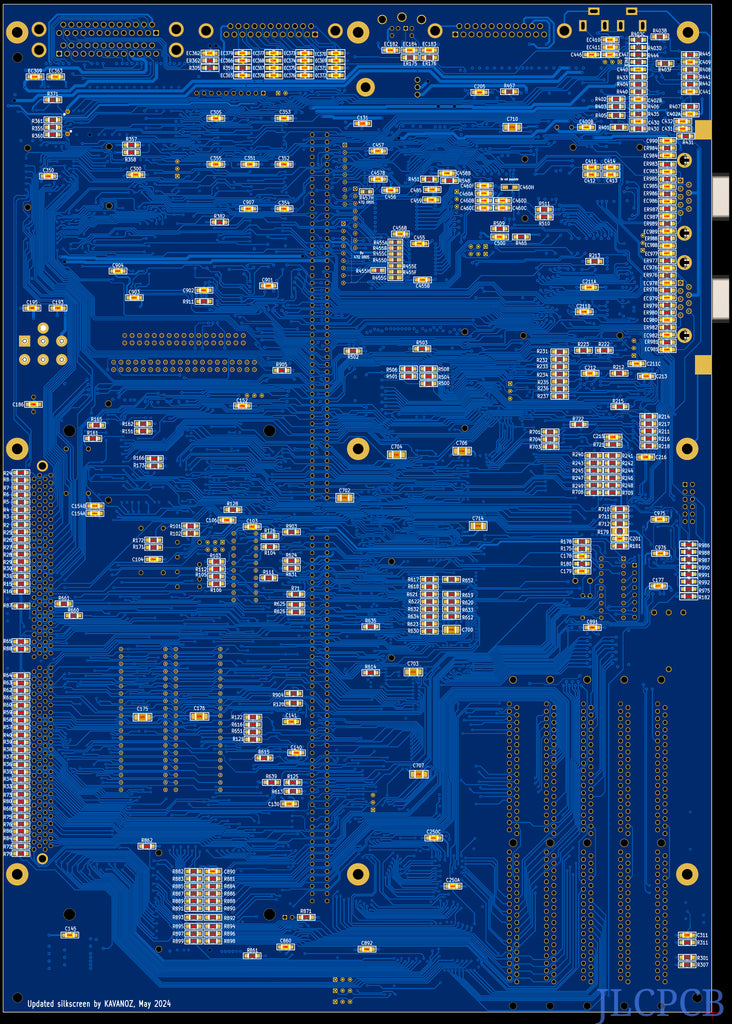

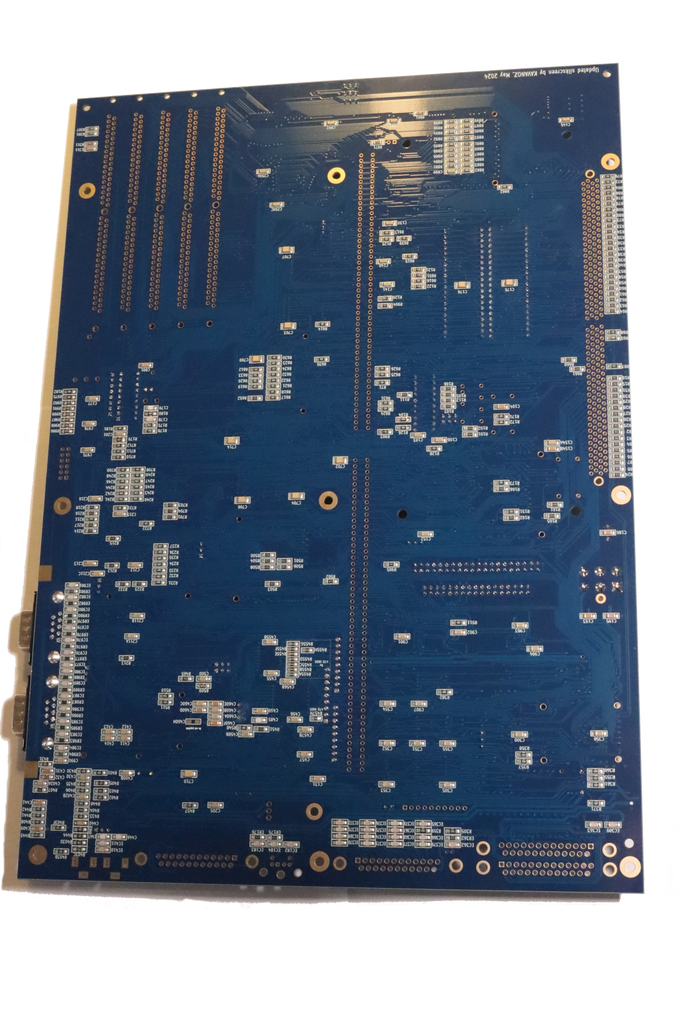

This PCB is manufactured as a 243 × 345 mm, 4-layer board using 1.6 mm FR4 TG135 material, with an ENIG (gold) surface finish to protect the copper against oxidation.

This is the Rev B motherboard, i.e. you need a CPU card, which is not a part of this listing. Also, the daughterboard is not included.

We are also offering only the PCB without any components (but optionally with stencils) as a separate listing.

Batch: 2026-07
