EC11E Rotary Encoder Breakout Board

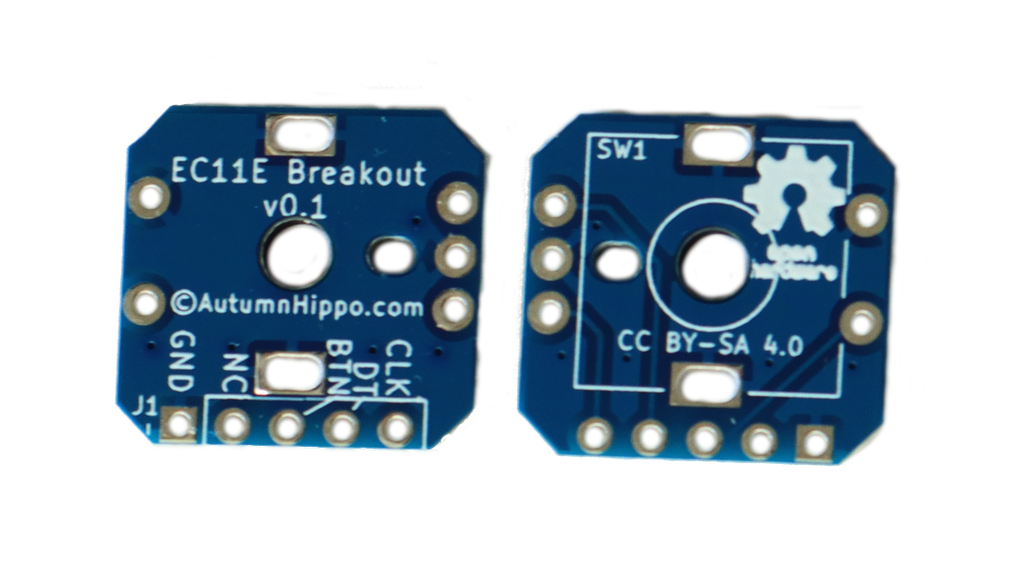

Breakout board for an EC11E rotary encoder with switch. The rotary encoder needs to be 5 pins + 2 ground mounts. Please see encoder pinout in the pictures.

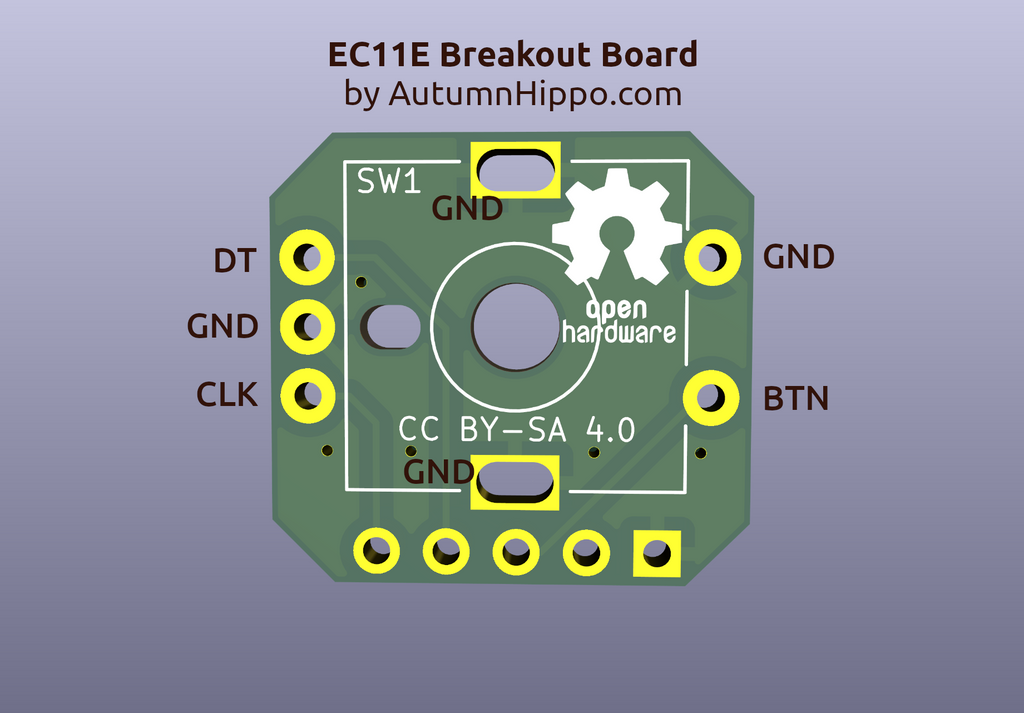

Board output pinout: CLK, DT, BTN, NC, GND

Designed to use minimal space so that it will fit together with the rotary encoder in most tight spaces. Will fit a 5 pin jumper cable for easy connection to a Gotek, OpenFlops or other board.

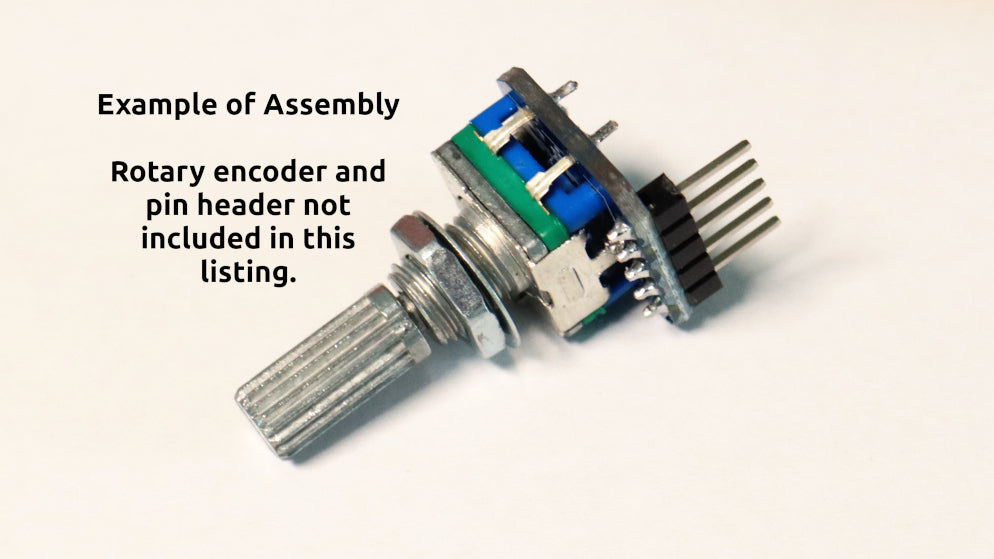

The encoder and a 2.54 mm 5 pin header need to be soldered to each side of the board.

Please see separate listing for rotary encoder, cable and breakout board combo.
